Advantages Capillary Tube Mats System
Environment friendly

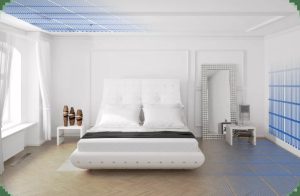

The raw material is Polypropylene- high quality, environmentally friendly and safe plastic with excellent physical characteristics and highly recyclable.Healthy & Comfortable Greata capillary mats realizes the heat exchange in a form of radiation with gentle and even temperature changes,draughtfree and noiseless.
Space saving & Easy installation
Within the construction, the thin capillary tubes with an outer diameter of 4.3 mm only be covered with leveling or sealing compound of 10mm thickness.
The high flexibility of the sinolanc capillary tube mats technology enables easy installation even in the most diverse structures.
Energy efficient
Water supplied in capillary tube mats only requires 28-32℃ for heating purpose, it reduce heating energy consumption compared with the 45-60℃ request of common floor heating pipes. It has tested the capillary system can save 30-40% consumption.For cooling in summer, the supply water is around 16-18℃ which is much higher than the traditional air conditioner.It can save 50-60% energy consumption. The combination of capillary mats with heat pump can achieved the highest outputs.- Various Energy Solution Greata capillary tube mats can be connected with air source heat pump, water source heat pump, ground source heat pump, solar energy, etc.
Long life & Free maintenance
All greata capillary tube mats are produced under strict quality control with a top level of precision and safety. No maintenance required with high quality the using life of capillary mat is around 50 years,Space saving & Easy installation Within the construction, the thin capillary tubes with an outer diameter of 4.3 mm only be covered with leveling or sealing compound of 10mm thickness. The high flexibility of the sinolanc capillary tube mats technology enables easy installation even in the most diverse structures.
Recent Work
Greata est une entreprise de haute technologie spécialisée dans le développement et la production de coussinets capillaires en Chine avec plus de seize ans de tradition.
Notre salle d'essai de tapis capillaires
100% pressure test for every single mat.
Pressure test at 20 bar
Testing time more than 20 mins.
Cover the dust cap after testing
100% of delivery qualification rate
Certificat de qualité
Features & Benefits
Lorem ipsum dolor sit amet, consectetur adipiscing elit.
Mauris eros dolor pellentesque sed luctus dapibus lobortis orci.
ISO9001
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Morbi volutpat justo sed efficit cursus. Mauris fringilla quam.
Premium
testing report
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Morbi volutpat justo sed efficit cursus. Mauris fringilla quam.
CE
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Morbi volutpat justo sed efficit cursus. Mauris fringilla quam.
Technical data
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Morbi volutpat justo sed efficit cursus. Mauris fringilla quam.

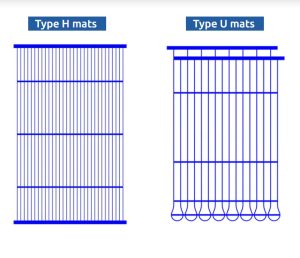

CAPILLARY TUBE MATS TECHNICAL DATA
Material: Polypropylene
Tube Size: Main tube: 20 x 2.0 mm (PN 10) Capillary tube: 4.3 x 0.8 mm
Mat Size: Width: max. 1000 mm
Length: max. 12000 mmDistance between capillary tubes: 10 mm~40 mm
Pressure:
Test pressure: 20 bar
Operating pressure in capillary system: 4~ 6 barTemperature:
For heating: 28 ~ 32℃
For cooling: 16~ 19℃ (above the dew point)
Max. temperature allowed in system: 55℃Heating/Cooling Capacity:
Underfloor heating : 100 w/m2
Wall heating capacity: 100 w/m2
Wall cooling capacity: 80 w/m2
Ceiling cooling capacity: 90 w/m2
(The specific capacity depends on the supply water temperature, installation types and related conditions.
